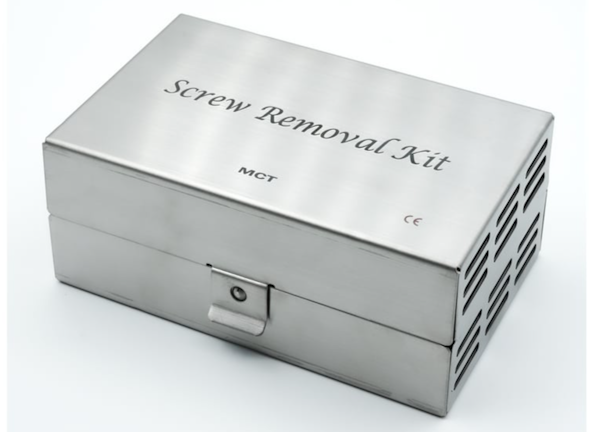

Fractured Screw Removal Tool Kit

Updated 2021-03-26
SKU:
MCT-SRK-01
Manufacturer:
MCT Bio

The only you kit you need to remove a fractured or broken screw and save the implant. Based on the proven counter-torque and reverse screw technique (Froum S., Compendium. 2011;32(7):2-24).

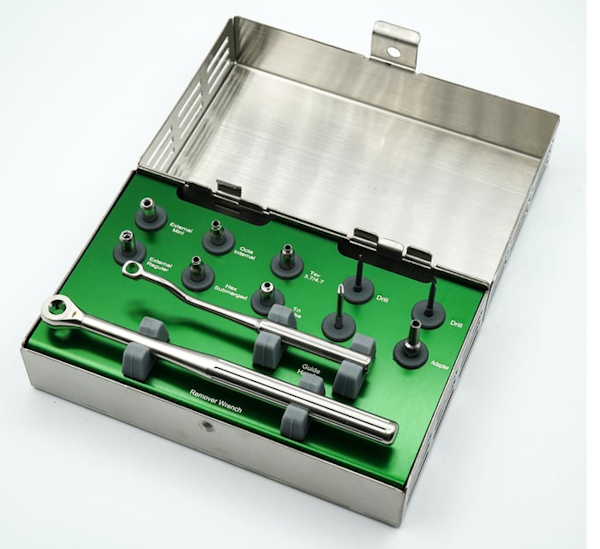

Kit includes: 6 Guides for various implant systems (see below), 2 Drills, 1 Tap, 1 Guide Handle, 1 Remover Wrench. The components in this kit are identical to those supplied in the Salvin Implant Rescue Kit, which is a combination of the Fractured Screw and Implant Removal Kit.

Please Check Compatibility

Before purchasing this kit, please make sure your implant system is compatible, by consulting the compatibility list below. If you are looking to remove screws from Straumann BL implants or Narrow Implants, check out our: Narrow Implant Broken Screw Removal Tool Kit. Note: Additional Screw Remover Guides not included in the kit, can be purchased separately. Learn more.

SKU: MCT-SRK-01

Regular Price: $650.00

Use the power of counter-clockwise force to effectively remove fractured screws with the this kit.

Fractured Screw Removal Kit Components

  • Reverse Threaded Screw Removal Tool
    The kit utilizes specialized screw removal drills to prepare a channel in the long axis of the screw. Then a self-tapping, reverse threaded screw removal tool is inserted and turned slowly to provide an engaging instrument which grabs hold of the fractured screw and unscrews it.
  • Certain Guides: Protect Implant Body and Position Drill in Center
    The system also includes a series of certain guides which protect the internal aspect of the implant body from the damaging effects of drills touching the threaded internal surface. The guide abutment system also allows the initial drill and the reverse tip to be positioned in the center of the broken screw.
  • Simple Procedure:
    • Pick certain guide for abutment.
    • Attach guide and hold it with holder
    • Use screw remover drill to take hold of the core of the broken screw in a reverse manner  (1200 rpm)
    • Use tap to remove the broken screw in a reverse manner (30 rpm)

How to Use the Fractured Screw Removal Tools



Fractured Screw Removal Kit Components

Certain Guides

2 Drills included in the kit

Please use the guide below for compatibility of the guides in the fractured screw removal kit.



Compatibility: Guides that Come with Kit

Hex Guide (H)
Astra Osseospeed TX 4.5/5.0
Dentium Internal Hex
Hiossen SS and GS
Lifecore Stage 1
Megagen ExFeel Internal Hex
NeoBiotech Internal Hex

Octa Guide (O)
Implant Direct SwishPlant
Implant Direct SwishPlus
Straumann ITI Tissue Level
Zimmer SwissPlus

External Mini (M)
Hiossen US (ET III)
Megagen ExFeel External Hex
Nobel Biocare Branemark System NP
Steri-Oss HexLoc 3.25
Steri-Oss Replace SD
Sterngold-Implamed NP

External Regular (W)
3i Cylindrical 4.0
3i Osseotite Miniplant 3.75
3i Osseotite
Nobel Biocare Branemark System Mk III and Mk IV
Nobel Biocare Branemark System Mk III Groovy (Nobel Speedy Groovy)
IMZ HexHead 3.3 and 4.0
Intralock 3.75 and 4.0
Keystone Restore
Lifecore Sustain
Megagen ExFeel External 4.0
Nobel Biocare Branemark System RP 4.1
Steri-Oss Hex-Loc 3.8 and 4.5
Steri-Oss Replace MD
Steri-Oss Replace WD
Sterngold Swede-Vent 3.75

TSV 3.7/4.7
BioHorizons Tapered Internal 3.5 and 4.5
BioHorizons Tapered Internal Plus 3.5 and 4.5
BioHorizons Tapered Tissue 3.5 and 4.5
BioHorizons Single-Stage 3.5 and 4.5
BlueSky Bio Internal Hex 3.5 and 4.5
BlueSky Bio Molar 3.5 and 4.5
Implant Direct SwishPlant 3.7
Implant Direct SwishPlus 3.7
Implant Direct Legacy (3.7 and 4.7 internal hex)
MIS 3.3, 3.75, and 4.2
Zimmer TSV 3.7, 4.1 and 4.7
Zimmer Bio-Vent SD and MD
Zimmer Core-Vent SD and MD
Zimmer Micro-Vent SD and MD
Zimmer SwissPlus 3.7 (Internal Hex)

Tri-Lobe
Implant Direct RePlant 3.5
Implant Direct RePlus 3.5
Implant Direct ReActive 3.5
Nobel Biocare Tri Lobe Systems NP


Other Guides Available for Purchase Seperately


3i Internal NP
3i Certain Implant Hex Narrow Platform (3mm Platform)
Implant Direct ScrewPlant
Implant Direct ScrewPlus
Zimmer SwissPlus 3.7, 4.1, 4.8 (Internal Octagon)

3i Internal RP
3i Certain Implant Hex Regular Platform (4.0mm platform)
Implant Direct ScrewPlant
Implant Direct ScrewPlus

Nobel Replace Tri-Lobe RP
NobelReplace/Select Regular Platform (4.3 and 5.0 Diameter Implants)
Implant Direct Replant Regular Platform (4.3 and 5.0 Diameter Implants)
Implant Direct Replus Regular Platform (4.3 and 5.0 Diameter Implants)
Implant Direct ReActive Regular Platform (4.3 and 5.0 Diameter Implants)

Nobel Replace Tri-Lobe WP
NobelReplace/Select Wide Platform (5.0 and 6.0 Diameter Implants)
Implant Direct Replant Wide Platform (5.0 and 6.0 Diameter Implants)
Implant Direct RePlus Wide Platform (5.0 and 6.0 Diameter Implants)
Implant Direct ReActive Wide Platform (5.0 and 6.0 Diameter Implants)

Nobel Active NP
NobelActive Narrow Platform (3.5 and 4.3 Diameter Implants)
Nobel Replace Conical Connection
Implant Direct InterActive Narrow Platform (3.5 and 4.3 Diameter Implants)

Nobel Active RP
NobelActive Regular Platform (4.3 and 5.0 Diameter Implants)
Nobel Replace Conical Connection
Implant Direct InterActive Regular Platform (4.3 and 5.0 Diameter Implants)

TSV 5.7
Zimmer TSV 6.0 Implant (5.7mm Platform)
Implant Direct Legacy 5.7
MIS 5 and 6

Video for Fractured Screw Removal Kit

This video provides a short demonstration of the fractured screw removal kit and shows the kits components.
