DALI
IOS Overdenture Abutment Attachment Kit for Straumann ITI Implants (Locator Compatible)
SKU: KER-CF331
IOS Overdenture Abutments for Straumann work in the same way as Locator ® Straumann Implant attachments. Simply, choose your Straumann implant platform, and then choose your tissue height.
Locator ® and Kerator compatible. Indicated for the Straumann CrossFit Connection only.
Choose Implant Platform
Choose Tissue Height
$99.99
$84.99
Buy 6+ Attachments of any Type for a 15% discount!

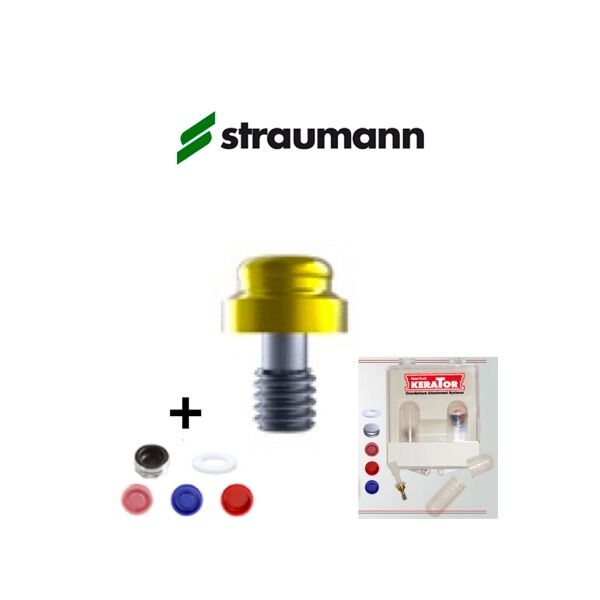

- Each kit includes: Abutment and a FREE Male Processing Set.
You May Also Like
Guides and Resources
Frequently Asked Questions
What specifically is included in each IOS Package?
Each IOS, Kerator compatible, pack comes with: Abutment, and a Male Processing Set which includes: 3 retention caps - Pink: 2.4 lbs, Blue: 1.2 lbs; Red: extra light angled, 0.8lbs, Metal housing, and a White spacer
Are IOS Straumann Denture Retention Abutments compatible with Straumann Locator or Kerator parts?
Yes all DALI and IOS Straumann Denture Retention Attachment parts are fully compatible with Straumann Locator ® and Kerator ® attachment systems.
What is the angulation of Kerator IOS angled attachments?
The angulation of the Angled Kerator IOS attachments is 15 degrees. The tissue heights for the angled attachments are either 1.5mm or 3.0mm. Angled overdenture abutment comes with a screw that requires 1.25mm hex driver. The torque value is 25 Ncm.
Does your Kerator Straumann Overdenture Abutment work with the Straumann BLX System?
No. The Kerator Straumann Overdenture abutment for Bone Level Implants is indicated only for the Standard Straumann Bone Level (BL) implants with the CrossFit Connection. It is not indicated for the Straumann Bone Level X (BLX) Implant system, which uses the TorcFit connection. Parts for the CrossFit Connection and TorcFit connection are not compatible.
Additional Information
IMPORTANT: These attachments ONLY work with the Straumann Cross Fit Connection.
The Straumann® CrossFit® connection is an internal prosthetic connection. It features a self-guiding design with a 15-degree internal cone and four internal grooves that ensure high mechanical stability, anti-rotation protection, and an exact fit between the implant and the abutment.
• Narrow CrossFit (NC): Used for implants with a 3.3 mm endosteal diameter, typically color-coded yellow.
• Regular CrossFit (RC): Used for larger diameters (4.1 mm and 4.8 mm), sharing the same prosthetic components and color-coded magenta.
The DALI Denture Retention Attachment (DRA) system works in the same way as Locator implants.
- Each kit includes: Abutment with a handle (ensures easy placement), and an optional FREE Extended or Standard Processing Set.
- Manufactured in Germany with precision!
- Includes Handle to ensure easy placement of abutment.
- Each abutment features: Triangle driver connection, Titanium Nitride coating for increased durabiliy and esthetics, Titanium grade 23 ELI for increased strength
- Processing kits feature: Fresh Insert colors standard and extended sizes, labeled for easy fitting Light (L), medium (m), high (h), and Metal housing machined with anti-rotation metal grooves to increase insert stability.
